Description
Mountain Birch - Vented Gas Logs
These hand painted originals, modeled from real world samples, add a touch of elegance to your home. The quality and design of the Real-Fyre Designer Series capture the realism, texture and subtle nuance of nature's handiwork.
The Real Fyre Mountain Birch Vented Gas Log Set is a beautifully crafted, refractory ceramic log set that is sure to retain strength even at high temperatures. Burn more efficiently while protecting natural resources and reducing pollution caused by most fireplaces with this log set. Heat will radiate not only during operation but for a short time after the set has been turned off as well.
When pairing the Real Fyre Mountain Birch Vented Gas Log Set with a G45A Burner, you will get the true potential out of these logs. Get the realistic look of an actual fire with the high definition bark and natural coloring that these logs showcase on each side as they are meant to go with a see through fireplace. With steel rods inserted in each log, maximum reinforcement is a guarantee. Stay cozy and complete your living space today with this log set.
G45 Series ANSI Certified T Burner Systems Come with Pre-assembled Control Valve & Regulator, Custom Grate, Glowing Embers, Sand or Vermiculite, Connector Kit, Log Locators, Burner Clips, and Damper Clamp. Remote Systems Include Basic Transmitter and Receiver The gas line will connect to the hearth kit on the right side of the unit.
- Main burner for great log presentation
- Extra burner in front for additional front flame
- Ember Glow creates a realistic look
- Compatible with all RH Peterson control systems
Features
Mountain Birch Vented Gas Logs Features
- Superior refractory ceramics ensure the logs retain their strength at high temperatures
- Burns efficiently while protecting natural resources and reducing pollution
- High definition bark and natural colors for an authentic wood look
- Steel rods inserted in each log provides maximum reinforcement
- Radiant heat while in operation and after set has been turned off
- Accessories available to enhance the look of your hearth
Specifications
Mountain Birch Vented Gas Logs Specifications:
Model | Minimum Fireplace Size | BTU Rating | ||||
Width | Depth | Height | Nat.Gas | L.p. Gas | ||
Front | Rear | |||||
G45-16/19 | 29" | 22" | 11" | 17" | 40K | 30K |
G45-18/20 | 30" | 24" | 13" | 17" | 70K | 45K |
G45-24 | 34" | 28" | 13" | 17" | 90K | 65K |
G45-30 | 40" | 34" | 16" | 17" | 95K | 75K |
G45-36 | 46" | 40" | 16" | 17" | 110K | 90K |
Details
Mountain Birch Vented Gas Logs Details:
COLLECTION | Vented Collection |
SERIES | Designer Series |
PRODUCT SIZES | 18", 24", and 30" |
BURNER STYLES | G45 ANSI certified |
FUEL OPTIONS | Propane/Natural Gas |
Download Documents
Mountain Birch Vented Gas Logs Downloadable Documents
Burner Systems FAQ
How you want to control your fire?
Do you want to manually turn your control knob to the “on” position? Or would you prefer a remote control?

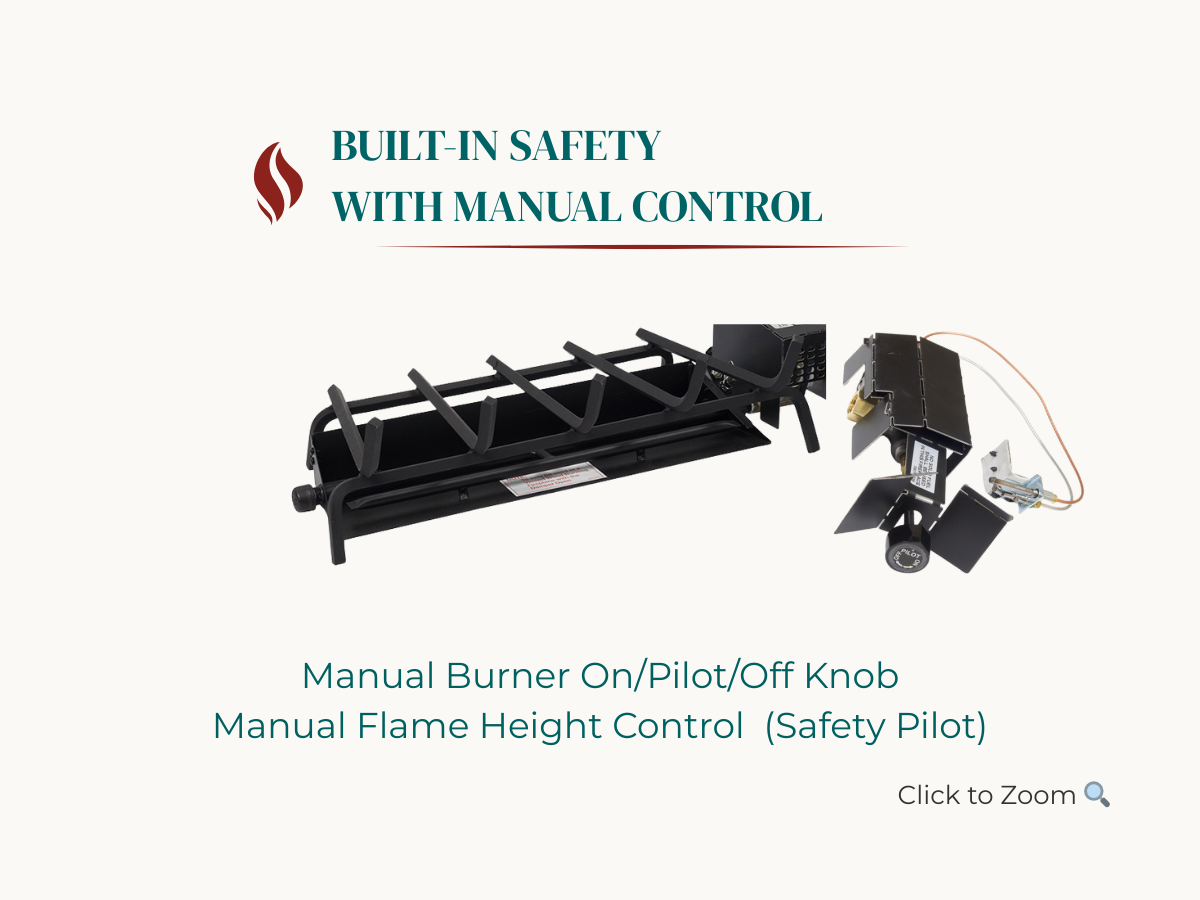

MANUAL SAFETY PILOT
This system has a safety pilot that is manually lit and stays lit all the time. Also called a standing pilot, it is similar to a pilot found in a water heater. You can turn the burner on and off manually by reaching inside your fireplace and turning the control knob.
You will typically have a control knob with three positions: ON/OFF/PILOT.
In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter.
REMOTE CONTROL SYSTEMS
Remote Control systems include a remote pilot valve assembly. Depending on the remote option you select, you will have the ability to control certain functions of the log set from a remote control. Remote controlled options include basic on/off control as well as variable flame height control and some with thermostat control settings.

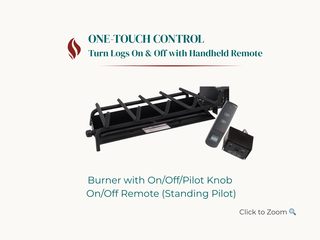

ON/OFF REMOTE
This remote control will have a Millivolt Valve (standing pilot) - In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter. A remote will turn the unit on and off. You adjust the height of the flames at the unit.

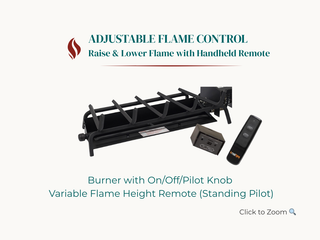

VARIABLE FLAME HEIGHT REMOTE
This remote control will have a Millivolt Valve (standing pilot) - In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter. A remote will turn the unit on and off and adjust the height of the flame up and down.
