Description

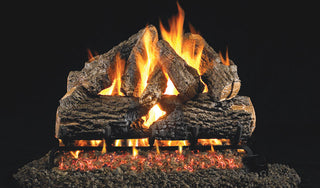

Charred Oak - Vented Gas Logs
The charming detail of the Real Fyre Charred Oak Vented Gas Log Set will accent your fireplace. This set is designed with charred logs that will bring the beauty of nature to life in your home. The logs have been created from real wood samples to meticulously recreate the look of real wood.Like an artist who can bring the beauty of nature to life, Real Fyre artisans work from real wood samples to meticulously recreate the intricate bark detail and natural coloration of deeply charred wood.
This log set is constructed of superior refractory ceramics to ensure the logs retain their strength at high temperatures. With steel rods inserted in each log, it maximizes reinforcement. Because of the construction radiant heat will be produced during operation and after the set has been turned off.
G45 Series ANSI Certified T Burner Systems Come with Pre-assembled Control Valve & Regulator, Custom Grate, Glowing Embers, Sand or Vermiculite, Connector Kit, Log Locators, Burner Clips, and Damper Clamp. Remote Systems Include Basic Transmitter and Receiver. The gas line will connect to the hearth kit on the right side of the unit. The burner cannot accommodate a left-hand gas inlet.
Features
Charred Oak Vented Gas Logs Features
- Sizes: 16", 18/20", 24" and 30"
- Refractory cement with steel reinforcement
- Double tube burner style
- Multiple ignition options available
- Superior refractory ceramics ensure the logs retain their strength at high temperatures
- Burns efficiently while protecting natural resources and reducing pollution
- High definition bark and natural colors for an authentic wood look
- Steel rods inserted in each log provides maximum reinforcement
- Radiant heat while in operation and after set has been turned off
- Accessories available to enhance the look of your hearth
Specifications
Charred Oak Vented Gas Logs Specifications:
Model | Minimum Fireplace Size | BTU Rating | ||||
Width | Depth | Height | Nat.Gas | L.p. Gas | ||
Front | Rear | |||||
G45-16/19 | 29" | 22" | 11" | 17" | 40K | 30K |
G45-18/20 | 30" | 24" | 13" | 17" | 70K | 45K |
G45-24 | 34" | 28" | 13" | 17" | 90K | 65K |
G45-30 | 40" | 34" | 16" | 17" | 95K | 75K |
G45-36 | 46" | 40" | 16" | 17" | 110K | 90K |
Details
Charred Oak Vented Gas Logs Details:
COLLECTION | Vented Collection |
SERIES | Charred Series |
PRODUCT SIZES | 16", 18/20", 24", and 30" |
BURNER STYLES | G45 ANSI certified |
FUEL OPTIONS | Propane/Natural Gas |
CONTROL STYLES | All Controls Available |
AVAILABLE IN THE FOLLOWING SIZES AND BURNER SYSTEM:
G45 BURNER 16", 18/20", 24", 30"
Download Documents
Charred Oak Vented Gas Logs Downloadable Documents
Burner Systems FAQ
How you want to control your fire?
Do you want to manually turn your control knob to the “on” position? Or would you prefer a remote control?
MANUAL SAFETY PILOT
This system has a safety pilot that is manually lit and stays lit all the time. Also called a standing pilot, it is similar to a pilot found in a water heater. You can turn the burner on and off manually by reaching inside your fireplace and turning the control knob.
You will typically have a control knob with three positions: ON/OFF/PILOT.
In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter.
REMOTE CONTROL SYSTEMS
Remote Control systems include a remote pilot valve assembly. Depending on the remote option you select, you will have the ability to control certain functions of the log set from a remote control. Remote controlled options include basic on/off control as well as variable flame height control and some with thermostat control settings.
ON/OFF REMOTE
This remote control will have a Millivolt Valve (standing pilot) - In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter. A remote will turn the unit on and off. You adjust the height of the flames at the unit.
VARIABLE FLAME HEIGHT REMOTE
This remote control will have a Millivolt Valve (standing pilot) - In the pilot position, you can have a standing pilot and will not need to relight it with a match/lighter. You must initially light it with a lighter. A remote will turn the unit on and off and adjust the height of the flame up and down.
