Real Fyre Split Oak Designer Plus Vented Gas Log Set brings an elegant, high-definition split oak look to your hearth. Modeled from real wood samples and hand-painted by Real Fyre artisans, each refractory ceramic log captures rich texture and natural color variation. Steel-reinforced cores provide lasting strength at high temperatures, while the ceramic construction absorbs and radiates heat for added warmth. Designed for pairing with G45 burner systems, Split Oak Designer Plus combines distinctive split-wood character with a realistic fire presentation.

Want an even fuller flame? Select the Flame Enhanced option for an upgraded setup that combines the Split Oak Designer Plus logs with a ceramic fiber-infused back log, aluminized steel panel, and Black Embers. The enhanced design intensifies the flame and radiant heat for an even more dramatic fire presentation.

Why You’ll Love This

Authentic Designer Series Detail: Hand-painted split oak logs modeled from real wood samples create a remarkably realistic appearance.
Built to Last: Premium refractory ceramic construction with steel reinforcement stands up to high fireplace temperatures season after season.
Radiant Warmth: Refractory ceramic logs absorb heat from the fire and radiate warmth back into the room.
Optional Flame Enhanced Setup: Choose Flame Enhanced for a ceramic fiber-infused back log, aluminized steel panel, and Black Embers designed to intensify the flame and radiant heat.
G45 Burner Compatibility: Pair with a Real Fyre G45 burner system for a dynamic flame pattern and glowing ember presentation.
Fuel & Control Flexibility: Configure your compatible burner system for Natural Gas or Propane with available control and remote options.
Proudly Made in the USA: Premium American craftsmanship from Real Fyre.

Not sure this is the right fit?

🧭 Use Our Product Finder →

Real Fyre Split Oak Designer Plus Vented Gas Log Set

$452.00

Unit price: per

Proudly Made in the USA | Free Shipping $99+ | Sales Tax-Free Except MI

Build Your Log Set

Choose your fuel, size, and ignition.

Fuel: Natural Gas

Log Size: 18"

Ignition: No, Thank You (Logs Only)

Still not sure?

📸 Start Your Complimentary Fireplace Compatibility Review →

Quantity

Shipping calculated at checkout.

🔒Secure checkout with encrypted payment

Need Help Before You Order?

Questions about compatibility or choosing the right gas logs? We’re happy to help.

☎ Call or Text 734-707-6589 Send a Message

Live chat available during business hours.

Real people. Expert fireplace guidance.

Why You’ll Love This

Authentic Designer Series Detail: Hand-painted split oak logs modeled from real wood samples create a remarkably realistic appearance.
Built to Last: Premium refractory ceramic construction with steel reinforcement stands up to high fireplace temperatures season after season.
Radiant Warmth: Refractory ceramic logs absorb heat from the fire and radiate warmth back into the room.
Optional Flame Enhanced Setup: Choose Flame Enhanced for a ceramic fiber-infused back log, aluminized steel panel, and Black Embers designed to intensify the flame and radiant heat.
G45 Burner Compatibility: Pair with a Real Fyre G45 burner system for a dynamic flame pattern and glowing ember presentation.
Fuel & Control Flexibility: Configure your compatible burner system for Natural Gas or Propane with available control and remote options.
Proudly Made in the USA: Premium American craftsmanship from Real Fyre.

See the Flame Enhanced Difference

Demonstration features Real Fyre Charred Majestic Oak. Flame appearance may vary by log set and burner configuration.

Log Size	NG Max BTU	LP Max BTU	Front Width (in)	Rear Width (in)	Depth (in)	Height (in)

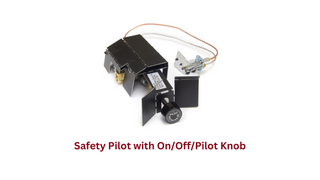

Manual Safety Pilot (Manual Flame Control)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17
On/Off Remote (Standing Pilot)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17
Variable Flame Remote (Standing Pilot)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17

Measure the inside opening of your firebox—not the existing logs—and record all four dimensions before choosing a set.

Measure the usable space inside the firebox, stopping at permanent obstructions that reduce the area available for the burner system.

Measure both widths

Record the front opening width and the rear width at the back of the firebox.

Check height and depth

Measure the usable interior height and the floor depth from front to back.

Allow room for a safe fit

Your burner and log set should be smaller than the firebox and meet the manufacturer’s clearance requirements.

Need more help? View the full step-by-step measuring guide
ANSI-Certified G45 Burner – Designed for vented gas log installations with reliable performance and a strong, natural-looking flame presentation.
Triple Burner Design – Uses a primary rear burner plus an additional front ember burner to create fuller flames and a more realistic ember bed.
High Heat Output – Produces up to 120,000 BTUs, depending on the size and configuration selected.
Natural Flame Presentation – Designed to highlight both the flame pattern and ember bed for added depth and a more authentic wood-fire look.
Multiple Ignition Options - Burner packages are available with Manual Safety Pilot and remote control options, depending on the configuration selected.
Natural Gas or Propane – Offered in both fuel types, with burner media matched to the selected setup for proper performance.
Wide Real Fyre Log Compatibility – Designed to pair with a broad range of Real Fyre vented gas log styles.
Made for Vented Fireplaces – Intended for approved vented fireplaces with the damper fully open and proper ventilation.
What’s included depends on the package selected. Complete Real Fyre G45 vented gas log packages include the burner system and setup components needed for installation, while Logs Only orders include the log set without burner, ignition, or installation parts.
Gas Logs – Your selected Real Fyre vented log set, designed with realistic bark detail and natural wood styling for a full, finished fireplace look.
G45 Vented Burner Assembly – Included with complete burner packages. ANSI-certified and designed to support a natural-looking flame pattern and glowing ember presentation.
Selected Ignition System – Included when a burner package is selected. Depending on the option chosen, this may include a Manual Safety Pilot, or Remote Control system.
Burner Media – Included with burner packages and may include sand (natural gas), vermiculite (propane), glowing embers, or lava granules depending on fuel type and configuration.
Log Grate – Included with complete burner packages to support proper log placement and flame presentation.
Damper Clamp – Included with burner packages where required for vented installation.
Installation Components – Includes the manufacturer-supplied burner parts and setup components needed for the selected system.
Owner’s Manual – Manufacturer instructions for installation, operation, safety, and maintenance.
Log Placement Guide – Step-by-step guidance for arranging the logs correctly for proper flame performance and appearance.
Manuals & Guides
RHP - G45 Vented Owners Manual

Fireplace Measurements & BTU

Log Size	NG Max BTU	LP Max BTU	Front Width (in)	Rear Width (in)	Depth (in)	Height (in)
Manual Safety Pilot (Manual Flame Control)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17
On/Off Remote (Standing Pilot)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17
Variable Flame Remote (Standing Pilot)
16"	40,000	30,000	29	22	11	17
18"	70,000	45,000	30	24	13	17
19"	40,000	30,000	29	22	11	17
20"	70,000	45,000	30	24	13	17
24"	90,000	65,000	34	28	13	17
30"	95,000	75,000	40	34	16	17
36"	110,000	90,000	46	40	16	17

Measure Your Fireplace

Burner Features

What's In the Box

Manuals & Guides

Product Information & Support

Vented Fireplace Design

Designed for use in indoor wood-burning or masonry fireplaces—choose the correct model for either a single-sided or see-thru configuration—with a working flue or chimney.

Realistic Flames

Delivers a natural-looking flame pattern with glowing embers that mimic a traditional wood-burning fire.

Decorative Appliance

Because the damper remains open, most heat escapes up the chimney—this set is meant to enhance ambiance, not serve as your primary heat source.

Ignition Options

Choose from manual safety pilot, millivolt valve systems, or electronic (intermittent) ignition—many models are compatible with optional remotes.

Tip: Always follow your owner’s manual and local codes for safe installation and operation.

Where to Install

• Masonry (natural brick) wood-burning fireplaces that have been converted to gas, with a fully functioning open flue or chimney
• Prefabricated solid-fuel wood-burning fireplaces converted to gas, with a working chimney or flue
• Outdoor wood-burning fireplaces converted to gas, with proper ventilation and an approved stainless steel burner

Always follow your owner’s manual for safe installation.

Where Not to Install

• Direct vent fireplaces or inserts
• Vent-free fireboxes or fireplaces
• Fireplaces not approved for vented gas logs
• Fireplaces without proper ventilation
• Burners not designed for vented gas logs

Log & Burner Fit

For the best performance and safety, always use the burner system made specifically for your vented gas log set. Outdoor installations must use an approved stainless steel burner.

Timeless Performance Starts with Simple Care

Indoor vented gas logs give you a beautiful, natural-looking fire. With a little seasonal upkeep and common-sense safety, your logs can burn bright for years. Always check your manual before first use.

Pre-Season

Remove dust, cobwebs, or debris from the fireplace and burner.
Test your pilot and ignition system.
Ensure logs are in the proper position and haven’t shifted.

In-Season

Observe flame behavior periodically.
Avoid rearranging logs unless your manual allows.
If it’s been a while or you notice any changes in performance, a quick annual inspection by a certified tech can help keep things running smoothly.

Important

Keep glass doors fully open while the logs are burning.
Follow your manual's cleaning and safety instructions to preserve your warranty.

Your order is treated with care from the moment you click “Buy.” Here’s what you can expect:

Fast Turnaround

Most in-stock gas logs ship within 2–3 business days—no long waits, no surprises. We’ll send a tracking number as soon as it’s on its way.

Split Shipments

If your order includes a burner, logs, or accessories, you may receive separate packages. No need to worry—they’re all en route and usually arrive within a few days of each other.

Real-Time Tracking

Every order includes detailed UPS or FedEx tracking, so you’ll know exactly where your package is and when to expect it.

Here for You—Start to Finish ✨

From your first click to your first cozy fire, our team is here to help every step of the way.

Whether you’re picking a log set, waiting on tracking, or setting up your burner—we’re just a message away.

Need help picking the right size? Confused about ignition systems? Wondering where your shipment is? Just ask.

Call/Text: 734.707.6589

Email: customersupport@americangasworks.net

Or Reach Out Here

Want the fine print?

Visit our Shipping & Delivery Policy for full details.

Oops! Broken Log?

Don't stress if your log arrives damaged! Just file a warranty claim here, and we'll get a replacement sent out to you right away—at no extra cost, no hassle.

Manufacturer’s Warranty

Real Fyre® Vented Gas Log Sets Limited Warranty Highlights

All Peterson vented ceramic refractory gas logs are warranted for as long as you own them (lifetime).

All Peterson vented burners are warranted for ten (10) years. Spk-26 controls are covered for three (3) years “all parts” warranty. The apk-17 valve is covered for two (2) years. All other Peterson valves, pilots and controls are covered by a one (1) year limited warranty (excluding batteries).

Real Fyre® Vent-Free Gas Log Sets Limited Warranty Highlights

All Real Fyre® Vent-Free ceramic refractory gas logs are warranted for as long as you own them (lifetime). All Real Fyre® vent-free burners are warranted for ten (10) years. All Real Fyre® glass, gems and fiber-ceramic blend logs are warranted for five (5) years. All Real Fyre® valves, pilots and controls are covered by a one (1) year limited warranty (excluding batteries).

Real Fyre® Direct Vent Systems Limited Warranty Highlights

The insert body and firebox are warranted as long as you own them (lifetime). Burner assemblies are warranted for ten (10) years. Ceramic glass panel is warranted for five (5) years (thermal breakage only). Gas logs are warranted for five (5) years. Electronics and gas controls are warranted for one (1) year.
